● 固态贴片，125℃高耐温品
● 适用于光电、LED电源、服务器设备
● 符合RoHS
| 特点 | 125℃高耐温品 |
| 温度 | -55～+125℃ |
| 额定电压 | 2.5V～35V |
| 容量 | 22~2200μF |
| 寿命 | 2K Hrs |
| 项目Item | 特性Characteristics | ||||||||||||||||||||||||||||||||||||||||||||||||
|
工作温度范围 Operating temperature range |
-55～+105℃ | ||||||||||||||||||||||||||||||||||||||||||||||||
|
额定电压范围 Rated voltage range |
2.5～35Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
|
标称容量允许偏差 Nominal capacitance tolerance |
±20% | （at25℃120Hz） | |||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
I≤0.2CV or 500μA，whichever is greater（at 20℃after 2 minutes） | 20℃ | 20℃，120Hz | 20℃ | |||||||||||||||||||||||||||||||||||||||||||||
|
I：漏电流 I：Leakage current |
C：标称容量 C：Nominal capacitance |
V：额定电压 V：Rated voltage |
|||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值(tanδ) Dissipation factor |
不超过指定值Not to exceed the value specified | at20℃120Hz | |||||||||||||||||||||||||||||||||||||||||||||||
|
等效串联电阻(ESR) Equivalent series resistance |
不超过指定值Not to exceed the value specified | at 100kHz | |||||||||||||||||||||||||||||||||||||||||||||||
|
耐久性Load life 105℃,2K Hrs, 不超过额定电压 105℃,2K Hrs, at rated voltage |
在105℃环境中，连续加载直流电压与额定纹波电流规定时间后，待产品温度恢复到20℃进行测量时，应满足以下要求： In the environment of 105℃,after continuous loading of DC votage and rated ripple current for specified time,the product shall be tested after its temperature back to 20℃,and following requirements should be met:（at120Hz） |
||||||||||||||||||||||||||||||||||||||||||||||||
|
容量变化 Capacitance change |
≤初始值的±20% ≤±20%of the initial value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
≤初始规格值 ≤the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
等效串联电阻(ESR) Equivalent series resistance |
≤初始规格值的150% ≤150%of the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值 Dissipation factor |
≤初始规格值的150% ≤150%of the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
耐湿性Moisture resistance 存放在 60℃,RH90~95%,2K Hrs stored at 60℃,RH90~95%,2K Hrs |
在60℃,RH90~95%环境中，无负载放置2000小时后，待产品温度恢复到20℃进行测量时，应满足以下要求： In the environment of 60℃with RH90~95%,the product shall be tested when its temperature backs to 20℃after 2000 hours with no load,following requirements should be met:（at120Hz） |
||||||||||||||||||||||||||||||||||||||||||||||||
|
容量变化 Capacitance change |
≤初始值的±20% ≤±20%of the initial value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
≤初始规格值 ≤the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
等效串联电阻(ESR) Equivalent series resistance |
≤初始规格值的150% ≤150%of the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值 Dissipation factor |
≤初始规格值的150% ≤150%of the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|

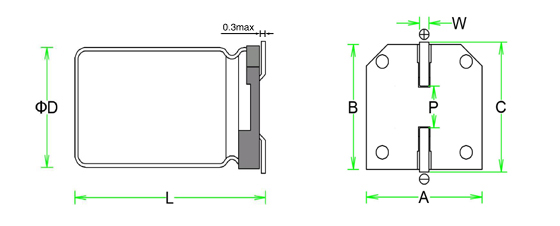

尺寸Size D*L(mm) |
ΦD（-0.1~+0.5） |
L ±0.5 |
A ±0.2 |
B ±0.2 |
C ±0.2 |
W |
P ±0.2 |
| 6.3*6 | 6.3 | 6.0 | 6.6 | 6.6 | 7.2 | 0.5~0.8 | 1.9 |
| 6.3*7.7 | 6.3 | 7.7 | 6.6 | 6.6 | 7.2 | 0.5~0.8 | 1.9 |
| 8*10.5 | 8.0 | 10.5 | 8.3 | 8.3 | 9.0 | 0.7~1.1 | 3.1 |
| 8*12.5 | 8.0 | 12.5 | 8.3 | 8.3 | 9.0 | 0.7~1.1 | 3.1 |
| 10*12.5 | 10.0 | 12.5 | 10.3 | 10.3 | 11.0 | 0.7~1.1 | 4.5 |
| 10*16.5 | 10.0 | 16.5 | 10.3 | 10.3 | 11.0 | 0.7~1.1 | 4.5 |
| 频率Frequency | 120Hz≤Freq.＜1kHz | 1kHz≤Freq.＜10kHz | 10kHz≤Freq.＜100kHz | 100kHz≤Freq.＜300kHz |
| 系数coefficient | 0.05 | 0.30 | 0.70 | 1.00 |
|
电压 WV(Vdc) |
容量 Cap(μF) |
漏电流 Lc(μA) |
tanδ | ESR(mΩ) |
额定纹波电流(mA) Rated ripple current |
尺寸 Size D*L(mm) |
| 2.5 | 330 | 500 | 0.08 | 30 | 800 | 6.3*6 |
| 390 | 500 | 0.08 | 30 | 800 | 6.3*6 | |
| 470 | 500 | 0.08 | 30 | 800 | 6.3*6 | |
| 560 | 500 | 0.08 | 30 | 900 | 6.3*6 | |
| 680 | 500 | 0.08 | 22 | 1200 | 6.3*9 | |
| 6.3 | 220 | 500 | 0.08 | 30 | 800 | 6.3*6 |
| 270 | 500 | 0.08 | 30 | 900 | 6.3*6 | |
| 330 | 500 | 0.08 | 30 | 900 | 6.3*6 | |
| 470 | 592 | 0.08 | 22 | 1000 | 6.3*9 | |
| 560 | 705 | 0.08 | 22 | 1100 | 6.3*9 | |
| 1000 | 1260 | 0.08 | 22 | 1200 | 8*11.5 | |
| 1500 | 1890 | 0.08 | 22 | 1300 | 8*11.5 | |
| 2200 | 2772 | 0.08 | 22 | 1600 | 10*12.5 | |
| 10 | 120 | 500 | 0.12 | 45 | 800 | 6.3*6 |
| 220 | 500 | 0.12 | 45 | 800 | 6.3*6 | |
| 220 | 500 | 0.12 | 30 | 900 | 6.3*9 | |
| 330 | 660 | 0.12 | 30 | 900 | 6.3*9 | |
| 560 | 1120 | 0.12 | 30 | 1000 | 8*11.5 | |
| 560 | 1120 | 0.12 | 30 | 1500 | 10*12.5 | |
| 1000 | 2000 | 0.12 | 22 | 1300 | 10*12.5 | |
| 1500 | 3000 | 0.12 | 22 | 1300 | 10*12.5 | |
| 16 | 47 | 500 | 0.12 | 60 | 500 | 6.3*6 |
| 68 | 500 | 0.12 | 60 | 600 | 6.3*6 | |
| 100 | 500 | 0.12 | 45 | 700 | 6.3*6 | |
| 150 | 500 | 0.12 | 45 | 700 | 6.3*6 | |
| 150 | 500 | 0.12 | 38 | 700 | 6.3*9 | |
| 180 | 576 | 0.12 | 90 | 700 | 6.3*6 | |
| 180 | 576 | 0.12 | 38 | 800 | 6.3*9 | |
| 220 | 704 | 0.12 | 38 | 700 | 6.3*9 | |
| 270 | 864 | 0.12 | 38 | 700 | 6.3*9 | |
| 560 | 1792 | 0.12 | 30 | 1000 | 8*11.5 | |
| 680 | 2176 | 0.12 | 30 | 1200 | 10*12.5 | |
| 1000 | 3200 | 0.12 | 30 | 1200 | 10*12.5 | |
| 25 | 22 | 500 | 0.12 | 75 | 300 | 6.3*6 |
| 47 | 500 | 0.12 | 75 | 500 | 6.3*6 | |
| 47 | 500 | 0.12 | 55 | 600 | 6.3*9 | |
| 56 | 500 | 0.12 | 75 | 500 | 6.3*6 | |
| 100 | 500 | 0.12 | 75 | 600 | 6.3*6 | |
| 100 | 500 | 0.12 | 45 | 700 | 6.3*9 | |
| 150 | 750 | 0.12 | 45 | 700 | 6.3*9 | |
| 220 | 1100 | 0.12 | 45 | 700 | 8*11.5 | |
| 330 | 1650 | 0.12 | 45 | 800 | 8*11.5 | |
| 330 | 1650 | 0.12 | 35 | 800 | 10*12.5 | |
| 470 | 2350 | 0.12 | 35 | 900 | 10*12.5 | |
| 35 | 22 | 500 | 0.12 | 90 | 300 | 6.3*6 |
| 47 | 500 | 0.12 | 70 | 300 | 6.3*6 | |
| 47 | 500 | 0.12 | 75 | 400 | 6.3*9 | |
| 68 | 500 | 0.12 | 60 | 500 | 6.3*9 | |
| 100 | 700 | 0.12 | 60 | 600 | 6.3*9 | |
| 100 | 700 | 0.12 | 45 | 900 | 8*11.5 | |
| 150 | 1050 | 0.12 | 45 | 900 | 8*11.5 | |
| 220 | 1540 | 0.12 | 45 | 700 | 8*11.5 | |
| 270 | 1890 | 0.12 | 45 | 700 | 8*11.5 | |
| 270 | 1890 | 0.12 | 45 | 800 | 10*12.5 | |
| 330 | 2310 | 0.12 | 45 | 800 | 10*12.5 | |
| 470 | 3290 | 0.12 | 45 | 900 | 10*12.5 |
