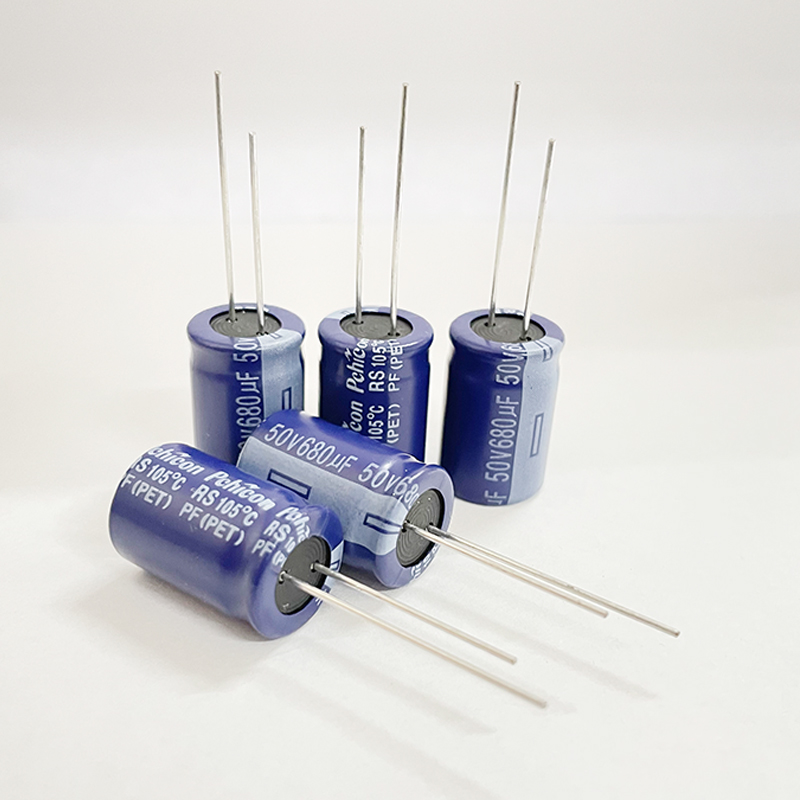

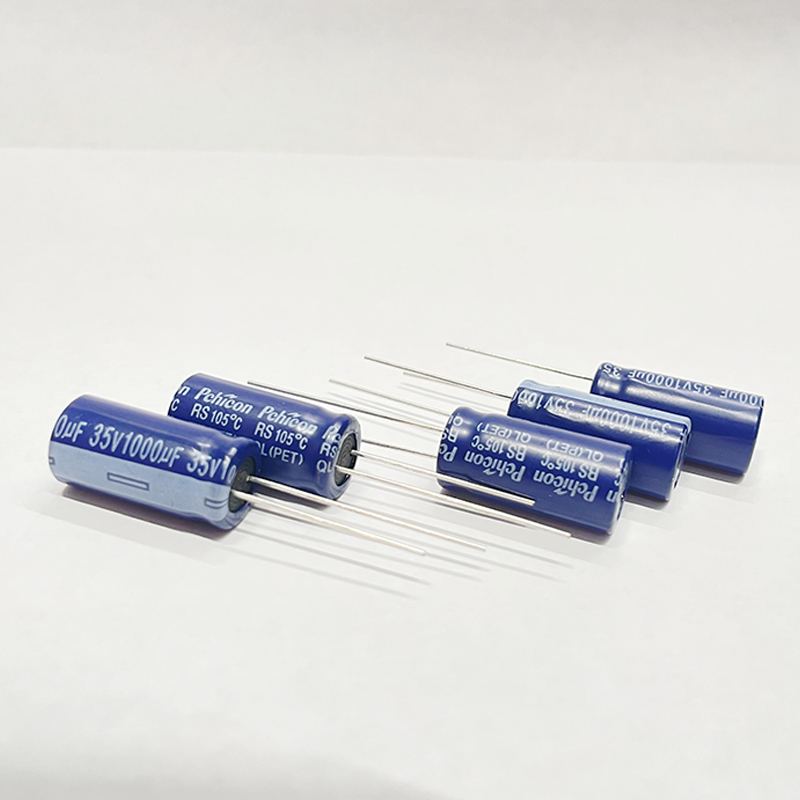

● 低ESR，长寿命品
● 适用于LED驱动电源，通信设备、开关电源，测量仪器等
● 符合RoHS
| 特点 | 低ESR,长寿命品 |
| 温度 | -40～+105℃ |
| 额定电压 | 6.3V～120V |
| 容量 | 1~10000μF |
| 寿命 | 4K~10K Hrs |
| 项目Item | 特性Characteristics | ||||||||||||||||||||||||||||||||||||||||||||||||
|
工作温度范围 Operating temperature range |
-40～+105℃ | ||||||||||||||||||||||||||||||||||||||||||||||||
|
额定电压范围 Rated voltage range |
6.3～120Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
|
标称容量允许偏差 Nominal capacitance tolerance |
±20% | （at25℃120Hz） | |||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
I=0.01CV或3μA取大者 I=0.01CV or 3μA Whichever is greater |
25℃，2分钟(25℃，2min) | 25℃，120Hz | 25℃ | |||||||||||||||||||||||||||||||||||||||||||||
|
I：漏电流 I：Leakage current |
C：标称容量 C：Nominal capacitance |
V：额定电压 V：Rated voltage |
|||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值(tanδ) Dissipation factor |
额定电压(Vdc)Rated voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 80 | 100 | 120 | at25℃120Hz | |||||||||||||||||||||||||||||||||||||
| tanδ(Max) | 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.09 | 0.08 | 0.12 | |||||||||||||||||||||||||||||||||||||||
|
当容量大于1000μF时，容量每增加1000μF，tanδ增加0.02 Capacitance＞1000μF：tanδincreases by 0.02 for each 1000μF from below value |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
温度特性 Temperature characteristics |
额定电压(Vdc)Rated voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 80 | 100 | 120 | at 120Hz | |||||||||||||||||||||||||||||||||||||
|
阻抗比Max Impedance ratio |
Z(-25℃)/Z(+20℃) | 4 | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | ||||||||||||||||||||||||||||||||||||||
| Z(-40℃)/Z(+20℃) | 8 | 6 | 4 | 3 | 3 | 3 | 3 | 3 | 3 | 6 | |||||||||||||||||||||||||||||||||||||||
|
耐久性 Load life |
在105℃环境中，连续加载直流电压与额定纹波电流规定时间后，待产品温度恢复到25℃进行测量时，应满足以下要求： In the environment of 105℃,after continuous loading of DC votage and rated ripple current for specified time,the product shall be tested after its temperature back to 25℃,and following requirements should be met: |
||||||||||||||||||||||||||||||||||||||||||||||||
|
容量变化 Capacitance change |
≤初始值的±25%（6.3V＆10V±30%） ≤±25%of the initial value |
ΦD (mm) |
Life(Hrs) | ||||||||||||||||||||||||||||||||||||||||||||||
| 6.3~10V | 16~120V | ||||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值 Dissipation factor |
≤初始规格值的200% ≤200%of the initial specification value |
ΦD≤6.3 | 4000 | 5000 | |||||||||||||||||||||||||||||||||||||||||||||
| ΦD≤8~10 | 6000 | 7000 | |||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
≤初始规格值 ≤the initial specification value |
ΦD≥12.5 | 8000 | 10000 | |||||||||||||||||||||||||||||||||||||||||||||
|
高温贮存 Shelf life |
在105℃环境中，无负载放置1000小时后，待产品温度恢复到25℃进行测量时，应满足以下要求： In the environment of 105℃with 1000 hours of no load,the product shall be tested after its temperature back to 25℃,and following requirements should be met: |
||||||||||||||||||||||||||||||||||||||||||||||||
|
容量变化 Capacitance change |
≤初始值的±25%（6.3V＆10V±30%） ≤±25%of the initial value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
损失角正切值 Dissipation factor |
≤初始规格值的200% ≤200%of the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||
|
漏电流 Leakage current |
≤初始规格值200% ≤200%of the initial specification value |
||||||||||||||||||||||||||||||||||||||||||||||||

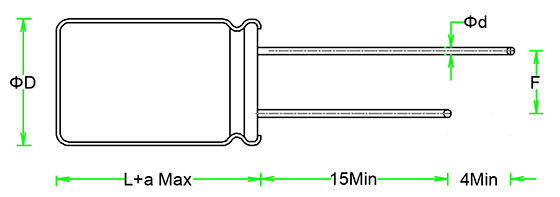

| ΦD+0.5Max | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 | 22 |
| F±0.5 | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 | 10 |
| Φd±0.05 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| a | ≤2.0 | |||||||
| Freq(Hz)Cap(μF) | 120 | 1k | 10k | 100k |
| Cap＜220 | 0.40 | 0.75 | 0.90 | 1.00 |
| 220≤Cap＜680 | 0.50 | 0.85 | 0.94 | 1.00 |
| 680≤Cap＜2200 | 0.60 | 0.87 | 0.95 | 1.00 |
| 2200≤Cap＜4700 | 0.75 | 0.90 | 0.95 | 1.00 |
| Cap≥4700 | 0.85 | 0.95 | 0.98 | 1.00 |
| 电压 WV (Vdc) | 容量 Cap (μF) | 尺寸 Size D*L(mm) | 阻抗 Impedance (Ω) | 额定纹波电流(mA) Rated ripple current |
| 6.3 | 150 | 5*11 | 0.600 | 195 |
| 220 | 6.3*12 | 0.550 | 230 | |
| 330 | 6.3*12 | 0.220 | 340 | |
| 680 | 8*12 | 0.135 | 645 | |
| 820 | 10*13 | 0.094 | 750 | |
| 1000 | 8*12 | 0.090 | 830 | |
| 1200 | 8*20 | 0.074 | 1030 | |
| 1500 | 10*20 | 0.048 | 1370 | |
| 10 | 68 | 5*9 | 0.750 | 110 |
| 100 | 5*11 | 0.590 | 195 | |
| 100 | 6.3*12 | 0.580 | 200 | |
| 220 | 6.3*12 | 0.220 | 340 | |
| 330 | 6.3*12 | 0.200 | 480 | |
| 470 | 8*12 | 0.138 | 645 | |
| 680 | 8*12 | 0.090 | 830 | |
| 820 | 8*12 | 0.078 | 960 | |
| 1000 | 8*17 | 0.073 | 1020 | |
| 1200 | 10*20 | 0.048 | 1350 | |
| 1500 | 10*20 | 0.051 | 1420 | |
| 2200 | 12*20 | 0.037 | 1870 | |
| 16 | 4.7 | 5*11 | 4.700 | 45 |
| 47 | 5*11 | 0.850 | 150 | |
| 56 | 5*11 | 0.600 | 195 | |
| 100 | 5*11 | 0.300 | 325 | |
| 220 | 6.3*12 | 0.150 | 370 | |
| 330 | 6.3*12 | 0.137 | 640 | |
| 330 | 8*12 | 0.135 | 650 | |
| 470 | 8*12 | 0.092 | 810 | |
| 680 | 10*13 | 0.063 | 1100 | |
| 1000 | 10*16 | 0.048 | 1370 | |
| 3300 | 13*25 | 0.040 | 2550 | |
| 6800 | 18*32 | 0.038 | 3500 | |
| 8200 | 18*36 | 0.037 | 3680 | |
| 10000 | 18*40 | 0.035 | 3870 | |
| 25 | 1 | 5*11 | 5.700 | 10 |
| 2.2 | 5*11 | 4.500 | 18 | |
| 22 | 5*11 | 0.985 | 90 | |
| 47 | 5*11 | 0.600 | 195 | |
| 47 | 6.3*9 | 0.600 | 198 | |
| 68 | 5*11 | 0.590 | 220 | |
| 100 | 6.3*12 | 0.220 | 340 | |
| 150 | 6.3*12 | 0.205 | 430 | |
| 220 | 6.3*12 | 0.145 | 620 | |
| 220 | 8*12 | 0.137 | 620 | |
| 330 | 8*12 | 0.095 | 810 | |
| 470 | 8*17 | 0.078 | 1000 | |
| 470 | 10*13 | 0.072 | 1030 | |
| 680 | 10*16 | 0.065 | 1360 | |
| 820 | 10*20 | 0.044 | 1610 | |
| 1000 | 10*20 | 0.040 | 1750 | |
| 1000 | 13*20 | 0.037 | 1750 | |
| 1500 | 13*20 | 0.028 | 2180 | |
| 1800 | 13*20 | 0.027 | 2200 | |
| 2200 | 13*25 | 0.026 | 2300 |
| 电压 WV (Vdc) | 容量 Cap (μF) | 尺寸 Size D*L(mm) | 阻抗 Impedance (Ω) | 额定纹波电流(mA) Rated ripple current |
| 35 | 10 | 5*11 | 4.500 | 90 |
| 33 | 5*11 | 0.600 | 195 | |
| 47 | 5*11 | 0.580 | 255 | |
| 56 | 6.3*12 | 0.220 | 340 | |
| 68 | 6.3*12 | 0.210 | 360 | |
| 100 | 6.3*9 | 0.210 | 410 | |
| 100 | 6.3*12 | 0.200 | 420 | |
| 150 | 8*12 | 0.137 | 640 | |
| 220 | 8*12 | 0.090 | 830 | |
| 330 | 8*17 | 0.063 | 1150 | |
| 330 | 10*13 | 0.063 | 1200 | |
| 470 | 10*16 | 0.046 | 1350 | |
| 560 | 10*20 | 0.044 | 1600 | |
| 680 | 12*20 | 0.032 | 1880 | |
| 1000 | 13*20 | 0.028 | 2180 | |
| 2200 | 16*25 | 0.024 | 3150 | |
| 3300 | 18*32 | 0.022 | 4000 | |
| 50 | 1 | 5*11 | 6.500 | 8 |
| 2.2 | 5*11 | 6.000 | 15 | |
| 3.3 | 5*11 | 5.600 | 28 | |
| 4.7 | 5*9 | 5.400 | 35 | |
| 4.7 | 5*11 | 5.200 | 40 | |
| 6.8 | 5*11 | 4.500 | 95 | |
| 10 | 5*11 | 2.800 | 105 | |
| 22 | 5*11 | 0.720 | 185 | |
| 33 | 6.3*12 | 0.450 | 195 | |
| 47 | 6.3*12 | 0.400 | 240 | |
| 56 | 6.3*12 | 0.320 | 295 | |
| 68 | 8*9 | 0.310 | 365 | |
| 100 | 8*12 | 0.180 | 520 | |
| 120 | 8*12 | 0.130 | 720 | |
| 150 | 8*12 | 0.130 | 730 | |
| 150 | 10*13 | 0.120 | 750 | |
| 180 | 8*20 | 0.095 | 890 | |
| 220 | 10*13 | 0.098 | 1020 | |
| 270 | 10*20 | 0.061 | 1200 | |
| 330 | 10*16 | 0.058 | 1380 | |
| 390 | 10*16 | 0.057 | 1450 | |
| 470 | 10*20 | 0.047 | 1620 | |
| 560 | 10*20 | 0.036 | 1920 | |
| 680 | 13*18 | 0.032 | 2130 | |
| 820 | 13*25 | 0.031 | 2200 | |
| 820 | 16*21 | 0.031 | 2200 | |
| 1000 | 13*25 | 0.027 | 2380 | |
| 1000 | 16*21 | 0.026 | 2500 | |
| 1500 | 13*30 | 0.025 | 2950 | |
| 2200 | 18*25 | 0.024 | 3150 | |
| 63 | 2.2 | 5*11 | 4.000 | 28 |
| 10 | 5*11 | 3.500 | 70 | |
| 15 | 5*11 | 3.300 | 100 | |
| 22 | 5*11 | 2.600 | 130 | |
| 22 | 6.3*12 | 2.500 | 135 | |
| 33 | 6.3*12 | 1.050 | 190 | |
| 39 | 8*9 | 0.850 | 270 |
| 电压 WV (Vdc) | 容量 Cap (μF) | 尺寸 Size D*L(mm) | 阻抗 Impedance (Ω) | 额定纹波电流(mA) Rated ripple current |
| 63 | 47 | 6.3*12 | 0.060 | 340 |
| 47 | 8*12 | 0.550 | 350 | |
| 56 | 8*12 | 0.530 | 400 | |
| 68 | 8*12 | 0.450 | 500 | |
| 82 | 8*16 | 0.380 | 650 | |
| 100 | 8*12 | 0.350 | 670 | |
| 100 | 10*13 | 0.290 | 700 | |
| 120 | 8*16 | 0.290 | 790 | |
| 150 | 8*13 | 0.265 | 840 | |
| 180 | 10*20 | 0.180 | 1000 | |
| 220 | 10*16 | 0.170 | 1150 | |
| 270 | 10*20 | 0.137 | 1200 | |
| 330 | 10*20 | 0.130 | 1275 | |
| 390 | 13*20 | 0.095 | 1600 | |
| 470 | 13*20 | 0.084 | 1950 | |
| 560 | 13*20 | 0.082 | 2250 | |
| 680 | 13*25 | 0.075 | 2400 | |
| 1000 | 16*25 | 0.066 | 2600 | |
| 80 | 22 | 6.3*9 | 2.350 | 110 |
| 47 | 8*9 | 0.162 | 240 | |
| 68 | 8*12 | 0.150 | 400 | |
| 100 | 8*14 | 0.110 | 520 | |
| 100 | 10*13 | 0.141 | 520 | |
| 120 | 10*16 | 0.087 | 670 | |
| 150 | 10*16 | 0.086 | 800 | |
| 220 | 10*20 | 0.079 | 1000 | |
| 470 | 13*25 | 0.065 | 1400 | |
| 680 | 16*25 | 0.054 | 1650 | |
| 820 | 16*32 | 0.052 | 1780 | |
| 1000 | 16*35 | 0.042 | 2000 | |
| 1000 | 18*27 | 0.042 | 2000 | |
| 100 | 1 | 5*11 | 5.750 | 10 |
| 2.2 | 5*11 | 5.220 | 28 | |
| 4.7 | 5*11 | 4.820 | 42 | |
| 6.8 | 5*11 | 1.950 | 60 | |
| 10 | 6.3*12 | 1.520 | 80 | |
| 15 | 6.3*12 | 1.050 | 120 | |
| 22 | 8*12 | 0.850 | 200 | |
| 27 | 8*12 | 0.520 | 250 | |
| 33 | 8*12 | 0.360 | 300 | |
| 39 | 8*17 | 0.380 | 390 | |
| 47 | 8*12 | 0.350 | 320 | |
| 47 | 10*13 | 0.340 | 450 |
| 电压 WV (Vdc) | 容量 Cap (μF) | 尺寸 Size D*L(mm) | 阻抗 Impedance (Ω) | 额定纹波电流(mA) Rated ripple current |
| 100 | 56 | 10*13 | 0.280 | 500 |
| 68 | 10*13 | 0.265 | 550 | |
| 82 | 10*13 | 0.180 | 720 | |
| 100 | 10*16 | 0.160 | 770 | |
| 150 | 10*20 | 0.132 | 900 | |
| 180 | 10*25 | 0.120 | 1000 | |
| 180 | 13*20 | 0.140 | 960 | |
| 220 | 13*20 | 0.120 | 1000 | |
| 270 | 16*25 | 0.065 | 1300 | |
| 330 | 13*25 | 0.100 | 1150 | |
| 330 | 16*21 | 0.062 | 1450 | |
| 470 | 16*25 | 0.059 | 1750 | |
| 120 | 10 | 6.3*12 | 6.000 | 75 |
| 33 | 8*12 | 3.500 | 240 | |
| 47 | 8*16 | 2.800 | 290 | |
| 47 | 10*13 | 2.800 | 290 | |
| 68 | 10*16 | 2.200 | 310 | |
| 82 | 10*16 | 2.000 | 330 | |
| 100 | 10*20 | 1.700 | 400 | |
| 150 | 13*20 | 1.000 | 600 | |
| 180 | 13*20 | 1.000 | 650 | |
| 220 | 13*20 | 0.850 | 740 | |
| 220 | 16*20 | 0.850 | 740 | |
| 270 | 16*25 | 0.600 | 830 | |
| 330 | 18*25 | 0.480 | 900 |
